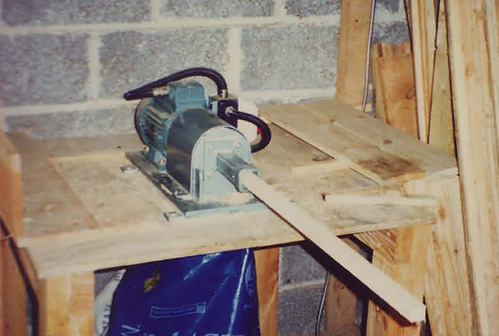

Hand fed machines for pointing of square stakes.

Insert set stake into pre-set guides, shavings discharged into a bag or collection via in-house extraction system.

Machine is fitted with D.O.L. Starter, interlock guard.

Machine A

Designed for bench mounting

Square Stake capacity   -   20 to 35mm

IE3 Motor - direct Coupled either:- 1.5 KW - 240V -1ph - 50 Hz supply

                                                              2.2 KW - 415V -3ph -50 Hz supply

Shavings Outlet   -  100mm dia

Spare set of knives included also setting gauge

Price - Please contact

Warranty - 12 months from date of supply against mechanical or electrical breakdown

Machine B

Free standing unit.

Square stake capacity 20 - 55mm.

Stake working height 810mm from floor level.

IE3 Motor - direct coupled 4KW -415v - 3 ph - 50Hz supply.

Puwer 98 injection brake.

Machine nominal dimensions -legth 1020mm x 460mm width.

4 levelling Foot pads.

Shaving Outlet 120 mm.

Spare set of Knives included also setting gauge.

Price - Please contact

Warranty - 12 months from date of supply against mechanical or electrical breakdown.
