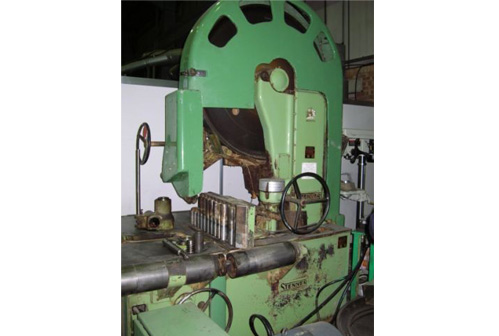

Stenner VHL48 – highly productive heavy duty resaw

1220mm diameter saw pulleys – 140mm tensioned width bandsaws

                       Fence to sawline            457mm
Maximum -  Feedwheel to sawline   305mm
                       Depth of cut                    710mm


• Full width table, rollers and radial arm feed wheels run in synchronism by an hydraulic feed gear, stepless feed speeds 0-40M/min instantly controlled, adjustable whilst cutting, outfeed extreme roller contra-rotates to return timber to sawyer.
• Pneumatically operated radial arm ensures feed wheel mirrors uncut outer face, should wide boards require sawing radial arm can be positioned below table.
• Multi-roller fence, cant any angle between 0-45 degrees.
• Chaco antifriction sawguides.
• Efficient saw and pulley lubrication system.
• Fully guarded saw access positions.
• 30KW (40HP) motor starter.
• Paint work checked repaint as required.

3 off ready to use Swedish steel bandsaw blades.

Site mechanical installation on prepared foundations.

Price - Please contact

Warranty - 6 months from date of supply.

Options available

• 30KW (40hp) Puwer control panel with provision for guard interlock switches.
• Special feed wheels for slab timber / arris rails /bespoke section.
• Heavy duty timber support roller stands for handling long timber.
