<< Back to

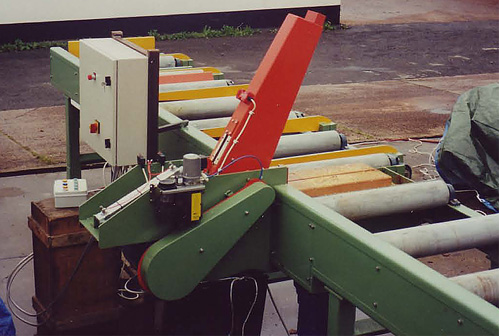

Robust machine with large cutting capacity, compact width, ideal for easy inclusion with machanised roller systems. Controls either sighted localised or remote to suit application.
Cutting capacity – 300mm (depth) x 600mm (width)
Width 300mm
Height -minimum 700mm (roller face to floor level)
Length 1900mm - includes 825mm roller width provision
Saw Motor 5.5kw
Descent – raised pneumatically
Chain lubrication automatic
Cutting sequence via P.L.C.
Sawdust waste spigot 150mm dia

Optional

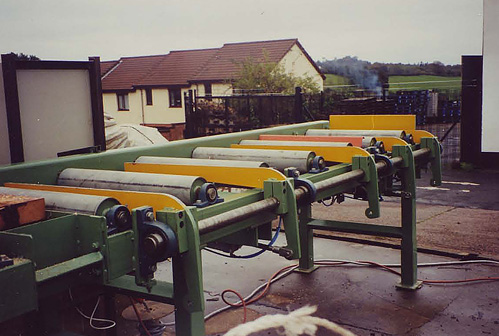

  • Infeed – Outfeed Roller Track, gravity or powered rollers, length to suit clients timber.
  • Graduated support fence
  • Heavy duty pneumatic stop
  • Aligning arms on infeed
  • Outfeed discharge system by powered chains or pneumatic levers
  • Outfeed storage – imbricate rollers or powered chains
  • Belt Conveyor for offcuts.
